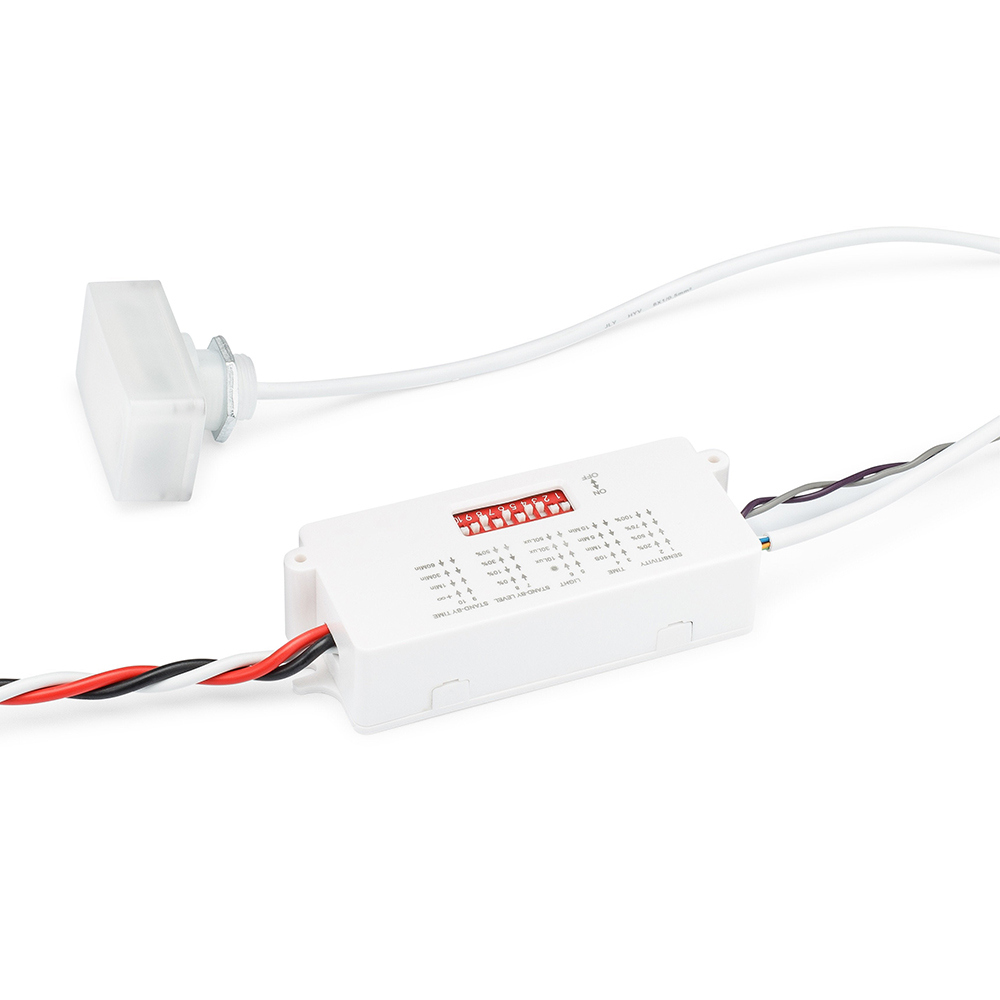

LED Wall Pack Light ProjectsMicrowave Pir Sensor 120-277V for LED Ceiling Light
SPECIFICATIONS
Power source:120-277V/AC
Power frequency: 50/60Hz
Transmission power:<0.2mW
Ratedload:
1200W15A,Max,tungsten(cosφ=1)(277V/AC)
500W/2.5A,Max,fluorescent(cosp=0.5)(277V/AC)
1000W15A,Max,tungsten(cosφ=1)(220-240V/AC)
300W/2.5A,Max,fluorescent(cosp=0.5)(220-240V/AC)
600W/5A,Max,tungsten(cosp=1)(100-130V/AC)
150W/2.5A,Max,fluorescent(cosp=0.5)(100-130V/AC)
HF system:5.8GHz CW electric wave, lSM band
Detection angle:360°
Detection range:2m/3m/4m/5m/6m/8m/10m/12m
(adjustable)
Time setting:10sec+3sec/1min+10sec/2min+30sec
4min±1min/6mint1min/8mint1min/
10min+1min/12min+1min(adjustable)
Light-control:24H/10LUX/20LUX/50LUX1100LUX/200LUX/
300LUX/500LUX(adiustable)
Installation sit:wall indoors,ceiling mounting
Working temperature:-15°C~+70°C
Power consumption:approx.0.5W
UTILIZING FIELD AND INTRODUCTION
Is a moving object sensor that can detect range of 360″and it’s working frequency is 5.8GHz.The advantage of this product is stable working state (stable working temperature: -15°C-+70°C).
adopts a microwave sensor(high-frequency output<0.2mW),so that it is safe and performs better than infrared sensor.
