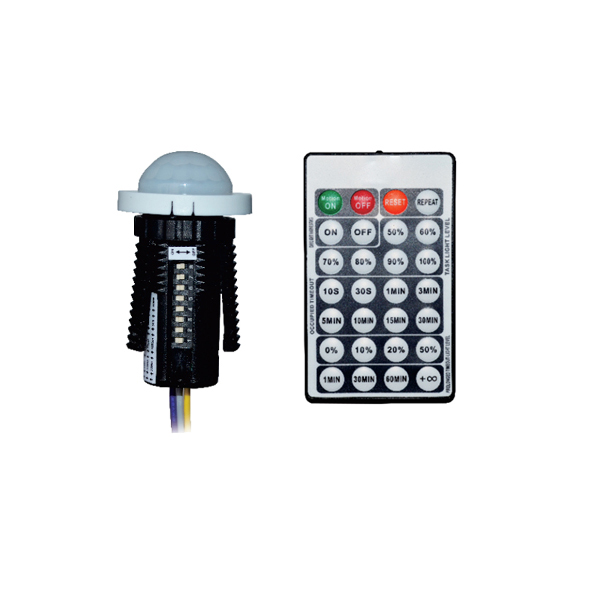

LED Wall Pack Light ProjectsPir Monitor Sensor IP20 for LED Panel Light
Specification :
Power supply : 10V-28V DC，>50mA
Dim control output :0-10V, max. 25mA sinking current
Mounting height : 4m Max.
Color coding of cable : Input : Gray-,Yellow+, Dimming : Violet+,Gray
Cable length : 100cm
Detection angle : 120°
Operating temperature : -20°C~70℃C
IP rating : IP20
Introduction
Is calibrated for use in a standard office situation with 600 lux installed and 500 lux required.
Is connected to the 0-10VDC control input, Using the knob to adjust the set point(300-600LUX).
With the DlP switch control, it is possible to deactivate daylight sensing(setting l = default)
With the knob control, it is possible to select a delay time between 10seconds and 30mins .
The ANT-18 0-10VDC luminaire-based sensor enables daylight regulation and dimming when no presence is
detected. The delay time can be customized between 10seconds and 30 minutes. the luminaire wil be dimmed
down to a dim level corresponding to 0.5V on the dim input of the ballast used when enough daylight is present
and/or when no presence is detected. The sensor measures the reflected light coming from the surface below
lt dims down the lamp output when the light level exceeds the required light level defined by the light sensor
set point.
