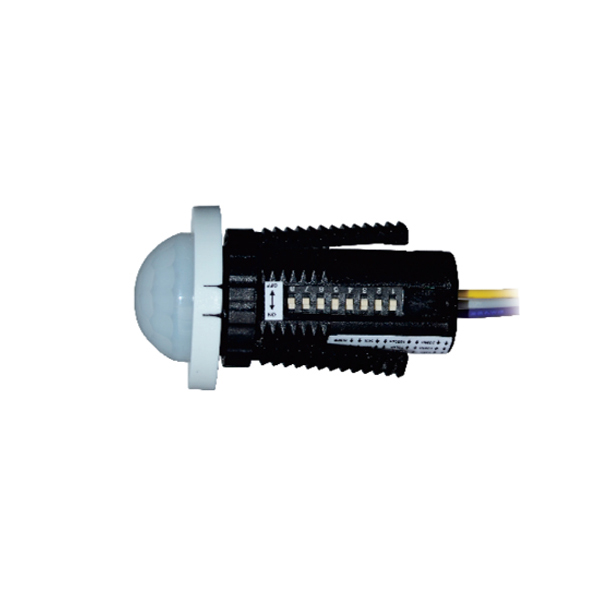

LED Wall Pack Light ProjectsWireless Pir Motion Sensor 12V with Daylight Harvesting
Power supply:10V-28V DC，>50mA
Dim control output:0-10V,max.25mA sinking current
Mounting height:15ft(4.5m)Max.
Color coding of cable:Input :Brown(VCC), Yellow(GND)-,Dimming : Violet(+),Gray(-)
Detection angle:120”
Operating temperature:-20°C~70°C
IP rating:IP20
Setting:Dip switch or remote control( the settings by the last time operation)
Warm up time:40seconds( Connect low voltage by first time )
Introduction

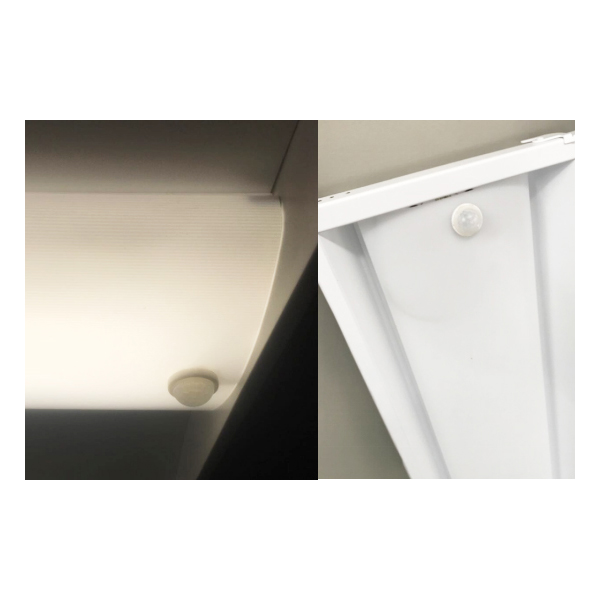

The is passive infrared occupancy bi-level sensor ,as a fixture sensor mounts in indoor
light fixture and provides daylight harvesting control. lt works by 10-28Vdc power, and controls 0-10
VDC LED drivers or dimming ballasts All controls parameters (Hold time, task lightlevel. stand-by

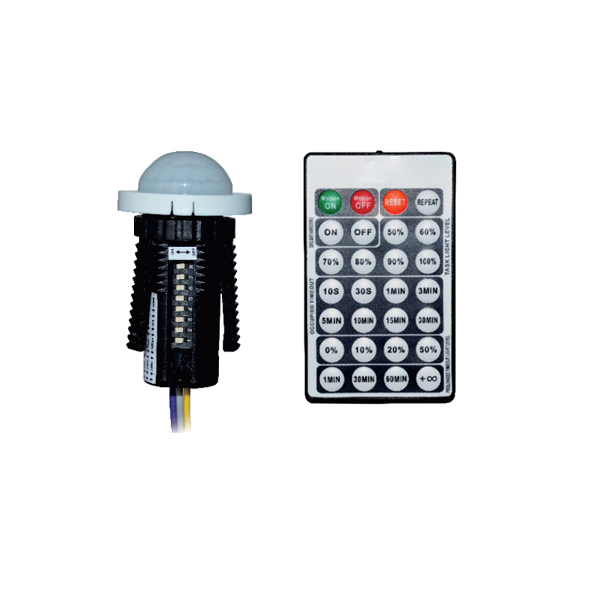

level, stand-by time) are adjustable via dip switch and task light level also works by remote control.
